Product Details:
|
| Warranty: | 1 Year And Extendable | Customized Support: | OEM, ODM |
|---|---|---|---|
| Display: | 7 Inch Color Capacitive Touch Screen | Resolution: | 0.1/0.001pH |
| Accuracy: | ±0.01pH | Measurement Range: | (-2~19.99)pH |
| Stability: | ±0.01 PH/3h | Temperature Resolution: | 0.1℃ |
| Temperature Accuracy: | 5 ~ 60℃:±0.4℃ Others: ±0.8℃ | MV Accuracy: | ±0.03% FS |
| MV Resolution: | 0.1mV | Calibration: | 1, 2, 3 Points |
| Type: | Benchtop PH Meter |
Product Name | High precision water pH Meter |
Types | Benchtop |
Origin | China |
Brand | PEAK INSTRUMENTS |
Model | T-710H |

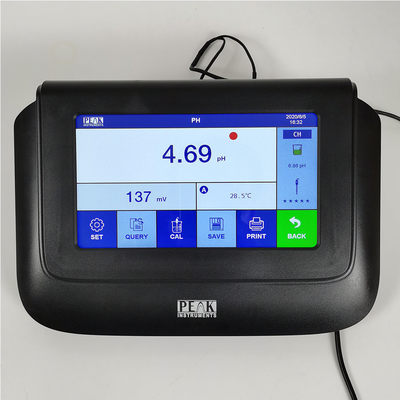

Display | 7 inch color capacitive touch screen |
Measurement range | (-2.000~19.999)pH |
Resolution | 0.001/0.01 pH |
Accuracy | ±0.01pH |
Stability | ±0.01pH/3h |
Input current | ≤1×10-12 A |
Input impedance | ≥1×1012 Ω |
Temperature range | -10℃~110℃ |
Temperature compensation | 0~100℃ |
mV range | -1999.9mV~1999.9mV |
mV resolution | 0.1mV |
Calibration | Automatic (1, 2, 3 point) USA, NIST and China standard |
Data storage | 300 sets |
Power | DC12V/1A |
Communication interface | USB |
Dimensions & Weight | 240×170×70mm/600g |
1. Produce main board | 2.Connect the cables for main board | 3. Make device frames | 4.Assemble core board on main board |
5.Install main board on the frame | 6. Install display screen on front frame |
7.Upload software | 8. Install electrode connectors | 9. Connect mainboard and display board | 10.Housing installation and final calibration |
Office and workshop buildings, factory was built up in 2006 | ||||||||
