Product Details:
|
Warranty: | 1 Year | Display: | 7 Inch LCD |
---|---|---|---|
Conductivity Electrode Constants: | 0.1/1/10 Cm-1 | Conductivity Measurement Range: | (0.00 ~ 20) μS/cm |
Conductivity Accuracy: | Instrument: ±0.80%FS | Conductivity Resolution: | 0.01/0.1/1μS/cm 0.01/0.1 MS/cm |
Conductivity Reference Temperature: | 25℃, 20℃, 18℃ | DO Measuring Range: | (0 ~ 20.00) Mg/L(ppm) |
DO Accuracy: | ±0.40 Mg/L, ±0.3% | DO Residual Current: | ≤0.1 Mg/L |
Power: | DC12V/1A(with Power Adapter) | Type: | Benchtop Conductivity TDS Slinity Dissolved Meter |

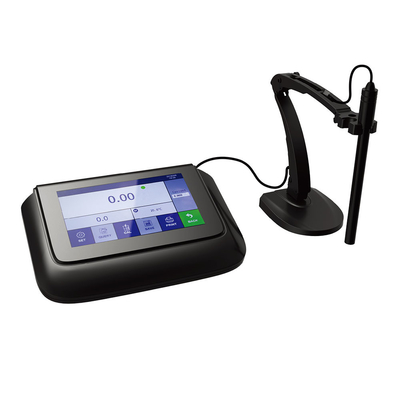

Product Name | Laboratory touch screen conductivity DO meter |
Brand | PEAK INSTRUMENTS |
Model | T723 |

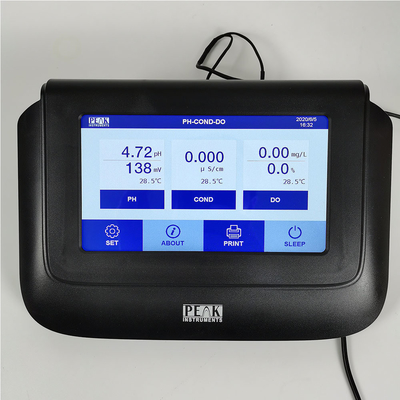

Display | Capacitive touch screen |
Conductivity Measurement range | (0.00~20.00)μS/cm (20.0~200.0)μS/cm (200~2000)μS/cm (2.00~20.00)mS/cm (20.0~200.0) mS/cm (200~2000) mS/cm (K=10) |
Resolution | 0.01/0.1/1μS/cm 0.01/0.1/1mS/cm; |
Accuracy | Conductivity:Electrode: ±0.5% FS, Instrument: ±0.80%FS; DO: ±0.40 mg/L, ±0.3% |
Temp compensation | (0 ~ 100) ℃ (automatic) |
Electrode constant | 0.1/1/10 cm-1 |
Reference temperature | 25℃, 20℃,18℃ |
DO measurement range | (0 ~ 20.00) mg/L(ppm) (0 ~ 200.0)% |
Resolution | 0.1/0.01 mg/L(ppm) 1/0.1 % |
Accuracy | ±0.40 mg/L, ±0.3% |
Response time | ≤30s (25℃, 90% response) |
Residual current | ≤0.1 mg/L |
Temp. compensation | (0 ~ 100)℃ (automatic) |
Salinity compensation | (0 ~ 45) ppt (automatic) |
Pressure compensation | (80 ~ 105) kPa (automatic) |
Automatic calibration | Air saturated by water, water saturated by air |

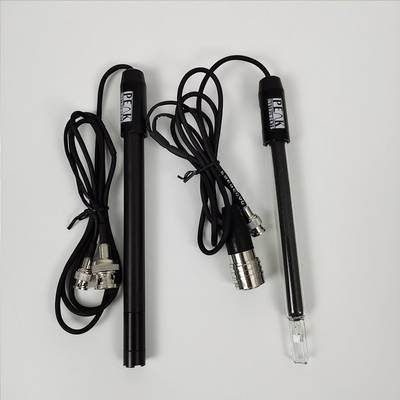

Electrode type | Polarographic |
Data storage | 1000 groups |
Power Supply | DC12V/1A(with power adapter) |

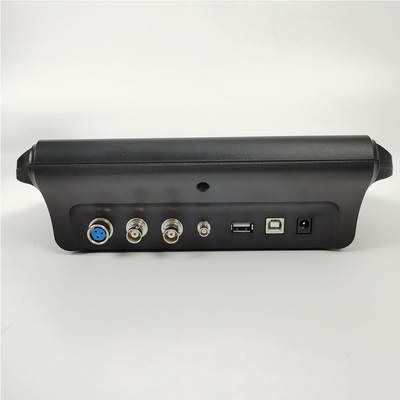

Communications | USB, Bluetooth |
Dimensions & Weight | 240×170×70mm/600g |
Storage contents | Series number, measuring value measuring unit and temperature |
Temperature compensation | 0~100℃ |
Ambient temperature | (5 ~ 35)℃ |
Ambient humidity | ≤85% |
IP grade | IP57 |
1. Assemble main board | 2.Connect the cables for main board | 3.Install display screen | 4.Install and test internal buttons |
5.Install front frame | 6.Assemble back frame |
7.Upload software | 8. Connect and install main board | 9. Install antiskid housing | 10. Final housing check and quality test |
Office and workshop buildings, factory was built up in 2006 |
