Product Details:
|
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Display: | 7 Inch LCD | Conductivity Electrode Constants: | 0.1/1/10 Cm-1 |
| Conductivity Measurement Range: | (0.00 ~ 200.0) MS/cm | Conductivity Accuracy: | Instrument: ±0.80%FS |
| Conductivity Resolution: | 0.01/0.1/1μS/cm 0.01/0.1 MS/cm | Conductivity Reference Temperature: | 25℃, 20℃, 18℃ |
| DO Measuring Range: | (0 ~ 20.00) Mg/L(ppm) | DO Accuracy: | ±0.40 Mg/L, ±0.3% |
| DO Residual Current: | ≤0.1 Mg/L | Power: | DC12V/1A(with Power Adapter) |
| Type: | Benchtop Conductivity TDS Slinity Dissolved Meter |

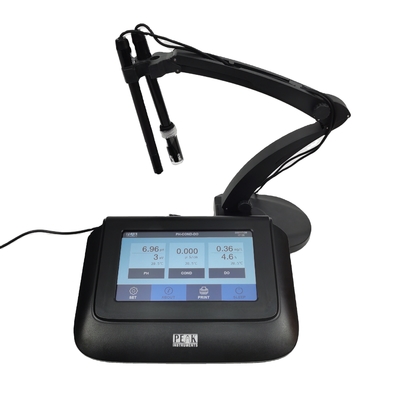

Product Name | Touch Screen Conductivity TDS Salinity dissolved oxygen DO Meter |
Types | Benchtop |
Model | T-723 |

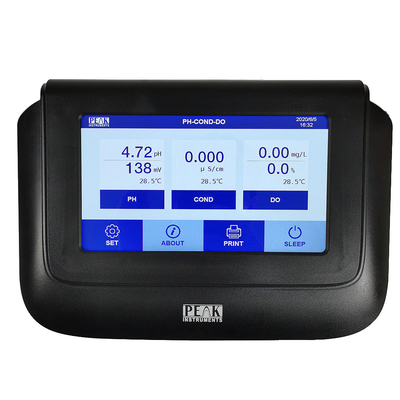

Display | 7 inch capacitive touch screen |
Conductivity Measurement range | (0.00~20.00)μS/cm (20.0~200.0)μS/cm (200~2000)μS/cm (2.00~20.00)mS/cm (20.0~200.0) mS/cm (200~2000) mS/cm (K=10) |
Resolution | 0.01/0.1/1μS/cm 0.01/0.1/1mS/cm; |
Accuracy | Conductivity:Electrode: ±0.5% FS, Instrument: ±0.80%FS; DO: ±0.40 mg/L, ±0.3% |
Temp compensation | (0 ~ 100) ℃ (automatic) |
Electrode constant | 0.1/1/10 cm-1 |
Reference temperature | 25℃, 20℃,18℃ |
DO measurement range | (0 ~ 20.00) mg/L(ppm) (0 ~ 200.0)% |
DO Resolution | 0.1/0.01 mg/L(ppm), 1/0.1 % |
DO Accuracy | ±0.40 mg/L, ±0.3% |
Response time | ≤30s (25℃, 90% response) |
Residual current | ≤0.1 mg/L |
Temp. compensation | (0 ~ 100)℃ (automatic) |
Salinity compensation | (0 ~ 45) ppt (automatic) |
Pressure compensation | (80 ~ 105) kPa (automatic) |
Automatic calibration | Air saturated by water, water saturated by air |

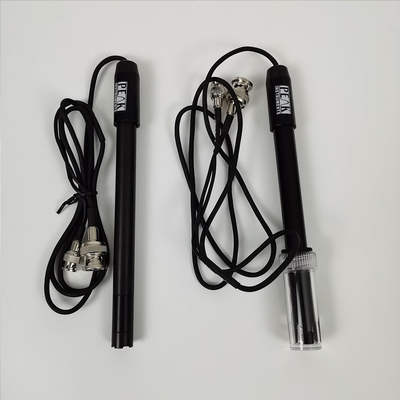

Electrode type | Polarographic |
Data storage | 300 groups |
Power Supply | DC12V/1A(with power adapter) |

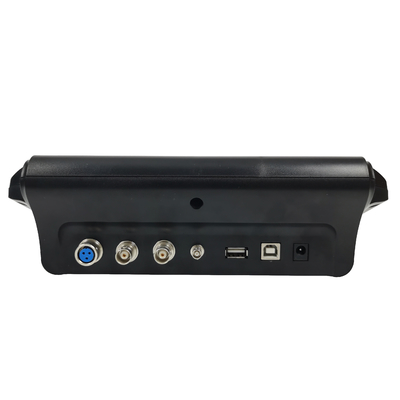

Communications | USB, Bluetooth |
Dimensions & Weight | 240×170×70mm/600g |
Storage contents | Series number, measuring value measuring unit and temperature |
Ambient temperature | (5 ~ 35)℃ |
Ambient humidity | ≤85% |
Quality | 1. Our products have good quality and very positive reputations in the market. 2. Customers are very happy with them and have a lot of good comments about our intruments and service. | |
Delivery Time | 1. We can get them ready 3-5 days after order confirmation for small orders. 2. For big quantities, need to be confirmed. 3. In most cases, fast delivery is guaranteed. | |
Technical Support | 1. We have service manual. If not, detailed documents or videos will be provided. 2. We can provide online or site training in our factory. 3. We can have video conference at any time. | |
Aftersales Support | 1. Respond to your questions within 10 minutes during our working time from 6:30 to 24:00, at most within 8 hours after 24:00 considering the time difference. 2. Within warranty, we will solve the problem for you with no charge(except for consumables). 3. You can call, text or email us at any time. We have good English speakers. | |
Warranty Time | One year and extendable | |
Our product advantages are as follws: | ||
4. Install main board on the frame | 5.Assemble monochromator |
Office and workshop buildings, factory was built up in 2006 | ||||||||
