Product Details:
Place of Origin: Shanghai, China
Brand Name: PEAK INSTRUMENTS
Model Number: E-2000UV
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $1,032.00/units >=1 units

4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability

Description
Warranty: 3 Years Customized Support: OEM, ODM
Size: 44*36*18CM Weight: 6.5KG
Focal Length: Null Wavelength Range: 190-1020nm, 190-1020nm
Display: 7 Inch Color Touch LCD Slit Width: 4 Nm
Photometric Repeatability: 0.2%T Photometric Accuracy: 0.5%T
Stray Light: ≤0.15%T@360nm Baseline Flatness: Null
Stability: 0.002A@500nm Output Port: USB
Light Source: Tungsten/Deuterium Lamp

Product Description
Product Name
Touch screen Single beam UV Visible spectrophotometer
Origin
China
Brand
PEAK INSTRUMENTS
Model
E-2000UV
Function
Photometry, quantitative measurement on standalone device.
Working Mode
T, A, C, F
Size
44*36*18CM
Weight
6.5KG
Focal length
null
Wavelength range
190-1020nm
Display
7 inch color touch LCD
Optical System
Single beam, Holographic Grating (1200 Lines/mm)
Spectral Bandwidth
4 nm
Wavelength Accuracy
±2nm
Wavelength Repeatability
≤1nm
Stray Light
≤0.15%T@360nm
Detector
Solid Silicon Photodiode
Light Source
Deuterium/Tungsten Lamp
Our Advantages
Quality
1. Our products have good quality and very positive reputations in the market.
2. Customers are very happy with them and have a lot of good comments about our intruments and service.
Delivery Time
1. We can get them ready 3-5 days after order confirmation for small orders.
2. For big quantities, need to be confirmed.
3. In most cases, fast delivery is guaranteed.
Technical Support
1. We have service manual. If not, detailed documents or videos will be provided.
2. We can provide online or site training in our factory.
3. We can have video conference at any time.
Aftersales Support
1. Respond to your questions within 10 minutes during our working time from 6:30 to 24:00, at most within 8 hours after 24:00 considering the time difference.
2. Within warranty, we will solve the problem for you with no charge(except for consumables).
3. You can call, text or email us at any time. We have good English speakers.
Warranty Time
One year and extendable
Our product advantages are as follws(for high end models):
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 0
1. 7 inch color LCD screen(button models) can show more parameters
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 1
2. Silicone buttons with much longer life span and easier to be operated
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 2
2. 7 inch capacitive touch screen and user friendly interface
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 3
4. Standard USB ports for data transfer and PC software connection.
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 4
5. More functions for basic models
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 5
6. Stable system with microcomputer processing
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 6
7. Automatic 8 position 1 cm cell holder(optional)
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 7
8. Long path cell holder can holde 1-10cm cuvettes(optional)
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 8
9. Tube rack for tubes with 16mm diameters(optional for all models)
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 9
10. Film cell holder(optional for all models)
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 10
11. Automatic sampler/sipper system(optional)
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 11
12. PC software, thermal printer, etc.
Why Choose Us
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 12
1. Positive comments from our Italian client
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 13
2. Good review from our customer in Italy
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 14
3. Great comments from Syria client
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 15
4. UAE customer is satified with our pH meter
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 16
5. Argentina customer is happy with our pH meters
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 17
6. Turkey user is satisfied with its performance of spectrophotometer
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 18
7. Spain customer is very happy with our fast service and professional technical support
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 19
8. Indian client is happy with our great support
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 20
9. Peru customer likes our spectrophotometer very much
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 21
10. Salvador customer has good comments on our pH meter
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 22
11. South Africa customer is happy with the accuracy of our spectrophotometer and pH meter
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 23
12. Customer in Poland said our products are very good
Certifications
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 24

CE

ISO 9001 and ISO14001 are also available
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 25

CE ANNEX

Product process
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 26
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 27
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 28
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 29
1.Install main board
2.Connect the cables for main board
3.Install W1 lamp and D2 lamp
4.Assemble sample chamber and cell holder
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 30
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 31
5.Install power board
6.Assemble monochromator
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 32
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 33
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 34
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 35
7.Upload software
8.Adjust and test W1 lamp and D2 lamp
9.System test
10.Housing installation and final calibration
Customer Photos
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 36
Customer visit and training
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 37
Visit cutomers and have a training
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 38
Customer from Brazil
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 39
Visit and train customers in Chile
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 40
Training
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 41
Customer from Argentina
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 42
Clients from Korea
4nm Bandwidth UV Visible Spectrophotometer with Touch Screen and 0.002A 500nm Stability 43
Distributor from Thailand
FAQ
Q: What areas and applications can it be used?
A: It can be used for qualitative or quantitative meansurements for water solution in the following areas: metallurgy, pharmacy, food, health, institutes, biological chemistry, life science, petrochemical industry, mining, quality control, environmental protection, etc.
Q: Does it need any installation
A: The installation is very simple, just need to connect it to power supply and turn it on, then you can use it.
Q: What standard accessories are included?

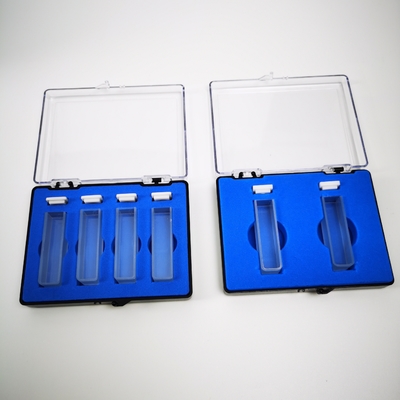

A: Main unit, 1cm cell holder(4 positions for single beam and 2 positions for double beam), 4 pcs of 1cm glass cuvette(all models) and 2 pcs of 1cm quartz cuvette(UV models), one USB with user manual and power cable.
Q: Is PC software included?
A: The PC software(CFR 21 or regular one) is optional. Also the thermal printer is available on requested.
Q: Why the reading is red and reach its maximum value 3.00Abs?
A: Probably you use the glass cuvette in UV range.
Q: Why the wavelength calibration or self checking fail?
A: The deuterium lamp is turned off or there is something wrong with the D2 lamp, like the fuse, triode or the lamp itself.
Q: Why is the reading is not as accurate as before?
A: Do the wavelength calibration before testing or restore the device to its default factory settings.
Q: Why PC software can not be installed successfully?
A: Close your anti-virus software on the computer and do it again.
Q: Why the software can not be connected successfully?
A: Please return to its initial interface and don't enter any menu when connecting to PC software. And the device can not be operated once connected to software. Secondly, unload the previous/old version PC software if there is.
Q: Can the data transferred to USB or PC?
A: Yes, you can transfer the saved data on the device to a USB then copy it to PC, or you can save the data directly on the PC via software.
Q: Why the Abs value is negative(lower than zero).
A: Do the blanking or change the reference sample.
