Home ProductsVisible Spectrophotometer

Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light

I'm Online Chat Now

Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light

Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light

Large Image :  Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light

Product Details:
Place of Origin: Shanghai, China
Brand Name: PEAK INSTRUMENTS
Model Number: C-7000V
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $891.00/units 1-9 units
Packaging Details: Carton Box
Supply Ability: 200 Unit/Units per Month

Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light

Description
Warranty: 1 Year Customized Support: OEM, ODM
Size: 53*41*25CM Weight: 13KG
Focal Length: Null Wavelength Range: 320-1100nm
Display: 7 Inch LCD Screen Optical System: Single Beam, Holographic Grating (1200 Lines/mm)
Spectral Bandwidth: 2nm Wavelength Accuracy: ±0.3nm
Wavelength Repeatability: ≤0.2nm Stray Light: ≤0.05%T@220, 360nm
Baseline Flatness: ±0.002A Noise: 0.0005@500nm
Detector: Solid Silicon Photodiode Light Source: Tungsten Lamp

Product Description
Product Name
Single beam Visible 2nm Spectrophotometer
Origin
China
Brand
PEAK INSTRUMENTS
Model
C-7000V
Size
53*41*25CM
Weight
13KG
Wavelength range
320-1100nm
Display
7 inch LCD screen
Optical System
Single beam, Holographic Grating (1200 Lines/mm)
Spectral Bandwidth
2nm
Wavelength Accuracy
±0.3nm
Wavelength Repeatability
≤0.2nm
Stray Light
≤0.05%T@220, 360nm
Baseline Flatness
±0.002A
Noise
0.0003@500nm
Detector
Solid Silicon Photodiode
Light Source
Tungsten Lamp
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 0
1. Photometry Measurements
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 1
2. Quantitative Test
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 2
3. Kinetics Measurement(time scanning)(software extended funtion)
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 3
4. Wavelength Scanning(software extended funtion)
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 4
5. Multiwavelength Test(software extended funtion)
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 5
6. DNA/Protein measurement(software extended funtion)
Our Advantages
Quality
1. Our products have good quality and very positive reputations in the market.
2. Customers are very happy with them and have a lot of good comments about our intruments and service.
Delivery Time
1. We can get them ready 3-5 days after order confirmation for small orders.
2. For big quantities, need to be confirmed.
3. In most cases, fast delivery is guaranteed.
Technical Support
1. We have service manual. If not, detailed documents or videos will be provided.
2. We can provide online or site training in our factory.
3. We can have video conference at any time.
Aftersales Support
1. Respond to your questions within 10 minutes during our working time from 6:30 to 24:00, at most within 8 hours after 24:00 considering the time difference.
2. Within warranty, we will solve the problem for you with no charge(except for consumables).
3. You can call, text or email us at any time. We have good English speakers.
Warranty Time
One year and extendable
Our product advantages are as follws:
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 6

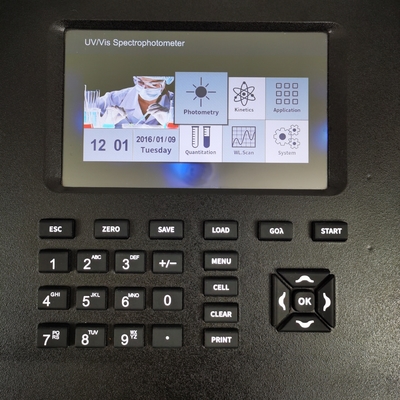

1. 7 inch color LCD screen(button models) can show more parameters
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 7
2. Silicone buttons with much longer life span and easier to be operated
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 8
2. 7 inch capacitive touch screen and user friendly interface
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 9

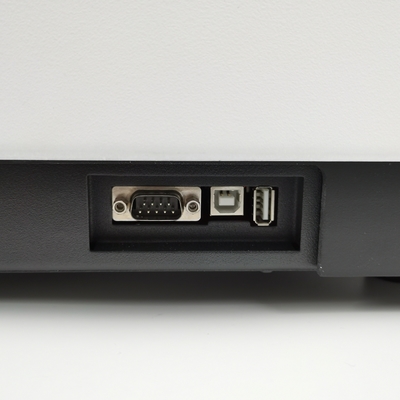

4. Standard USB ports for data transfer and PC software connection.
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 10
5. More functions for basic models
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 11
6. Stable system with microcomputer processing
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 12

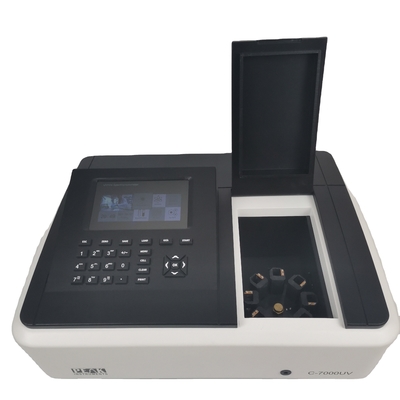

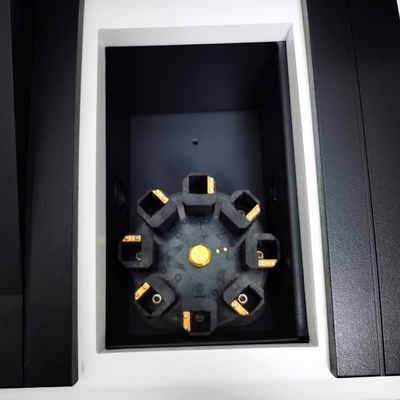

7. Automatic 8 position 1 cm cell holder(optional)
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 13
8. Long path cell holder can holde 1-10cm cuvettes(optional)
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 14
9. Tube rack for tubes with 16mm diameters(optional for all models)
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 15
10. Film cell holder(optional for all models)
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 16
11. Automatic sampler/sipper system(optional)
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 17
12. PC software, thermal printer, etc.
Why Choose Us
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 18
1. Positive comments from our Italian client
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 19
2. Good review from our customer in Italy
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 20
3. Great comments from Syria client
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 21
4. UAE customer is satified with our pH meter
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 22
5. Argentina customer is happy with our pH meters
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 23
6. Turkey user is satisfied with its performance of spectrophotometer
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 24
7. Spain customer is very happy with our fast service and professional technical support
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 25
8. Indian client is happy with our great support
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 26
9. Peru customer likes our spectrophotometer very much
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 27
10. Salvador customer has good comments on our pH meter
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 28
11. South Africa customer is happy with the accuracy of our spectrophotometer and pH meter
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 29
12. Customer in Poland said our products are very good
Certifications
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 30

CE

ISO 9001 and ISO14001 are also available
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 31

CE ANNEX

Product process
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 32
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 33
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 34
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 35
1.Install main board
2.Connect the cables for main board
3.Install W1 lamp and D2 lamp
4.Assemble sample chamber and cell holder
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 36
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 37
5.Install power board
6.Assemble monochromator
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 38
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 39
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 40
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 41
7.Upload software
8.Adjust and test W1 lamp and D2 lamp
9.System test
10.Housing installation and final calibration
Customer Photos
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 42
Customer visit and training
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 43
Visit cutomers and have a training
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 44
Customer from Brazil
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 45
Visit and train customers in Chile
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 46
Training
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 47
Customer from Argentina
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 48
Clients from Korea
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 49
Distributor from Thailand
FAQ
Q: What areas and applications can it be used?
A: It can be used for qualitative or quantitative meansurements for water solution in the following areas: metallurgy, pharmacy, food, health, institutes, biological chemistry, life science, petrochemical industry, mining, quality control, environmental protection, etc.
Q: Does it need any installation
A: The installation is very simple, just need to connect it to power supply and turn it on, then you can use it.
Q: What standard accessories are included?
A: Main unit, 1cm cell holder(4 positions for single beam and 2 positions for double beam), 4 pcs of 1cm glass cuvette(all models) and 2 pcs of 1cm quartz cuvette(UV models), one USB with user manual and power cable.
Q: Is PC software included?
A: The PC software(CFR 21 or regular one) is optional. Also the thermal printer is available on requested.
Q: Why the reading is red and reach its maximum value 3.00Abs?
A: Probably you use the glass cuvette in UV range.
Q: Why the wavelength calibration or self checking fail?
A: The deuterium lamp is turned off or there is something wrong with the D2 lamp, like the fuse, triode or the lamp itself.
Q: Why is the reading is not as accurate as before?
A: Do the wavelength calibration before testing or restore the device to its default factory settings.
Q: Why PC software can not be installed successfully?
A: Close your anti-virus software on the computer and do it again.
Q: Why the software can not be connected successfully?
A: Please return to its initial interface and don't enter any menu when connecting to PC software. And the device can not be operated once connected to software. Secondly, unload the previous/old version PC software if there is.
Q: Can the data transferred to USB or PC?
A: Yes, you can transfer the saved data on the device to a USB then copy it to PC, or you can save the data directly on the PC via software.
Q: Why the Abs value is negative(lower than zero).
A: Do the blanking or change the reference sample.
Exhibition
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 50
Analytica in Germany
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 51
Pittcon in USA
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 52
ArabLab in Dubai
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 53
IndiaLabExpo in India
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 54
Analytica Lab Africa
Visible Spectrophotometer with 320-1100nm Wavelength Range and ≤0.05%T 220 Stray Light 55
Analitica Latin America in Sao Paulo, Brazil
